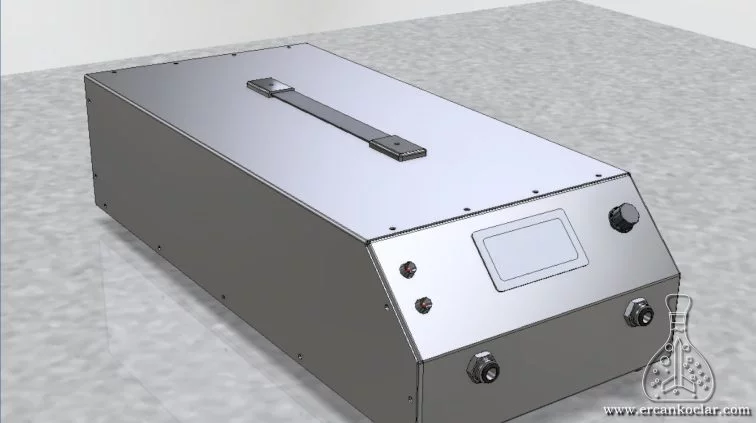

Ozone Generator W3G
- A project for an ozone gas O3 generator used for air purification, disinfection, and various chemical processes.
- The project was designed to be portable according to the customer’s requirements and the equipment they used.
- Tasks Completed in the Project:
- All designs
- Adapter design transitioning from round to square for the air supply fan (3D printed)
- Case design and layout of the component placements
- Laser cutting data
- Bending data
- Data for welded manufacturing
- Assembly data
- The project was delivered to the customer after a few revisions.
